VE-148P Binocular Polarization Microscope

The VE-148P is a professional polarized light microscope, ideal for observing crystalline or fibrous materials and the identification or study of mineral textures. The VE-148P offers observations with 3 types of polarized light (conoscopic, simple and orthogonal) and has a rotating circular stage, divided by a 360° scale.

Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.

Specifications

• Eyepieces: Wf 10X/20Mm with Rubber Eyecups and Diopter Adjustment On One Eyepiece.
• Head: Binocular Siedentopf Type, 45 degree Inclined and 360 degree Rotation, with Interpupillary Distance Adjustment Between 48 - 75Mm / 1.88" - 2.95" and Bertrand Lens System.
• Nosepiece: Quintuple Nosepiece with Anti-Slip Ring and Click-Stops.
• Objectives: 4X, 10X, 25X (Retractable), 40X (Retractable) and 63X (Retractable) with Achromatic Optics, Metallic Finish and Color Ring for Easy Identification.
• Stand: Stative, Robust and Reinforced with Epoxy Paint Finish.
• Stage: Circular Mechanics with 170 mm / 6.69" Diameter, Divided In 360 degree Scale, Goniometer and Double Sample Adjustment Option, Two Clips Or Removable Mechanical Stage with X-Y Movement.
• Condenser: Abbe, A.N. 1.3 of Oscillation.
• Diaphragm: Iris with Filter Holder.
• Focusing: Coarse and Fine Anti-Slip Control Knob with Tension Adjustment.
• Illumination: Kohler Halogen 12V/30W with Variable Intensity Control and Field Diaphragm In The Lamp.
• Power Supply: 120V, 50/60 Hz Ac Adapter.
• Dimensions: 10.43" x 18.30" x 11.61"

Accessories Included

• 2 Allen Wrenches.
• Dust Cover.
• Power Cord.
• Eyepiece 10X/20Mm with Grid Reticle.
• Gypsum (1 Λ), Mica (1/4 Λ), Quartz Wedge and Cover Dust Filters.
• Micrometer Eyepiece, Div:0.1 mm.
• Stage Micrometer.
• Eyepiece 10X/20Mm with Cross Division Reticle.

Warranty

• 10-Years Limited Warranty

Documents

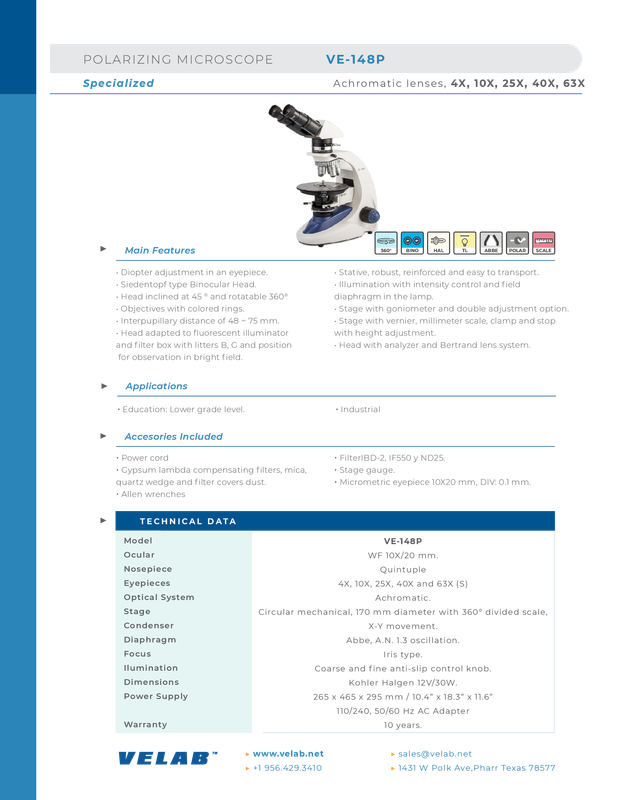

• Data Sheet
