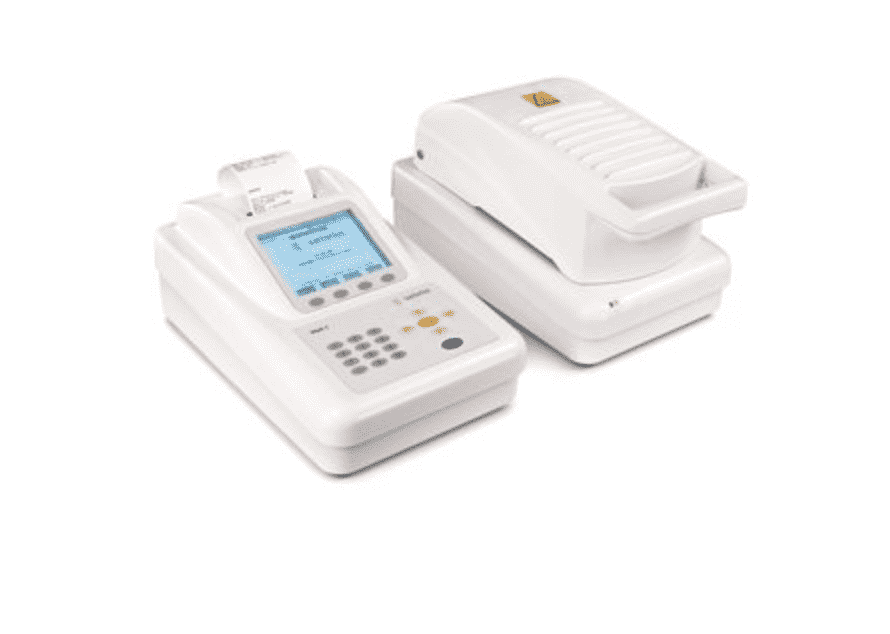

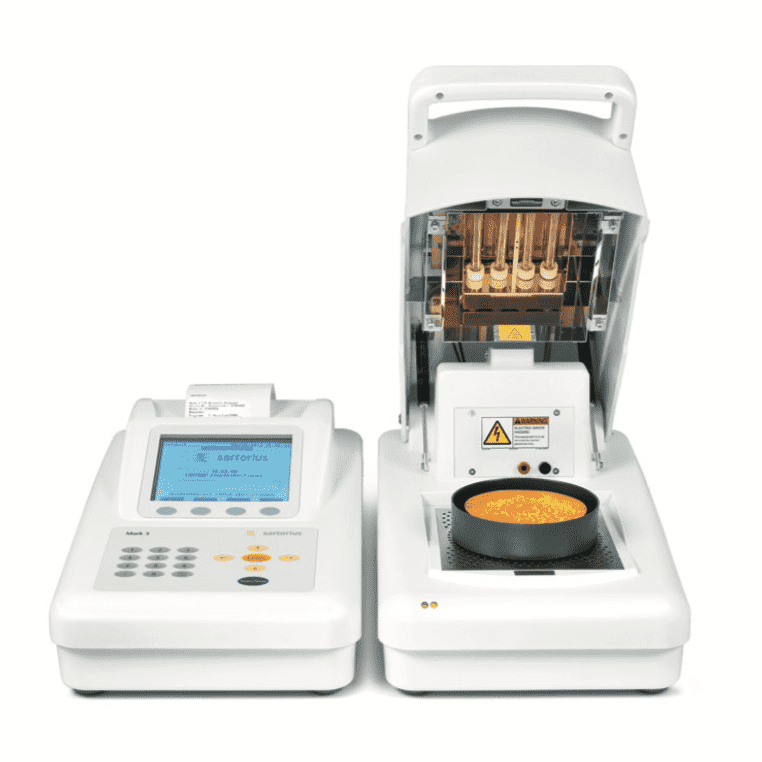

Sartorius LMA110-SET Mark 3 LTE Moisture Analyzer
Sartorius LMA110-SET-P Mark 3 LTE moisture analyzer with printer, consisting of - LMA100PA control module, incl. printer - LMA110SQ heater module for measurement (1 mg, 40 g) with Warranty

Sartorius LMA110-SET Mark 3 LTE Moisture Analyzer

Regular price
Regular price
Sale price
  • Condition :

    Brand new in its original packaging

  • SKU : LMA110-SET
  • Brand :

    Ramo Trading & Consulting Inc is an authorized distributor

  • Shipping :
    Free Shipping

    FREE to the 48 contiguous states (and Washington DC)

Mark 3 LTE moisture analyzer, which includes:

  • Control module LMA110SA-000U
  • Heater module LMA110SQ-000U (1 mg, 40 g)
  • optional upon request: Individual moisture analysis service (YMD01P)


  • Economical and reliable alternative to greenhouse
  • One-button measurements - Operation with a few minutes learning curve
  • Robust and fast, ideal for routine operation
  • Multiple module operation allows parallel measurements of up to 2 different samples to be performed on a single device


  • Integrated calibration weight: No
  • Data interface: Serial
  • Dimensions (WxDxH): 41.3 x 49.5 x 23.5 cm
  • Sample Ids: Yes
  • Memory data storage: 999 individual results with statistics: average, SD, RSD, high and low
  • Display: Quarter VGA with contrast adjustment (black on white or white on black), Sealed membrane keypad with audible tactile feedback
  • Readability: 1 mg, 0.01%
  • Analysis mode: Timer mode, when value falls below a defined weight loss per time unit (% / min), trend shutoff
  • Presentation mode for results: Weight,% Moisture,% Solids,% Volatiles, PPM moisture, PPM drying mass
  • Heating mode: Standard or concentration mode, programmable temperature steps, one or two
  • Maximum number of programs: 60
  • Password protection: Yes
  • Maximum weighing capacity: 40 g
  • Line tension: 90-250 VAC 50/60 Hz self-adjusting power supply
  • Modular configuration control and heater modules: Optional, up to 2 heater
  • Temperature Adjustment: Optional fixture for internal electronic two point
  • Temperature Display: Display of both target and current temp at each stage of drying and standby
  • Conserve Mode Clock: Programmable time by day of week to shut down and wake up analyzer
  • Ideal Weight: Audio and visual signal when ideal weight is reached
  • Target Limit Alert: Minimum and maximum programmable limits and screen alert when test
  • Operator names: Twenty alphanumeric operator names
  • Graph Mode: Graph of Temperature / Time and Percent / Time
  • Internal Clock Date and Time: International, Military or AM / PM
  • Audible Tone: Key stroke, ideal weight met and end of test, selectable On or Off
  • System Status Indicator Lights: Two tri-color LEDs (balance & heater) on front of heater module
  • Heating source: Thermogravimetric, loss on drying, Heat Source: Four parallel infrared quartz cylinders
  • Temperature range: 30 degree C - 210 degree C in one-degree increments / RTD sensor, +/- 1 degree C, Standby temperature selectable from 30 degree C - 160 degree C
  • Weighing system accuracy: +/- 1 mg
  • Starting at an initial sample weight of approximately 1 g: ? 0.2%
  • Starting at an initial sample weight of approximately 5 g: ? 0.05%
  • Approximate weight: 10 kg

Application note
Data_Mark3_LTE_App_Snack_Food_W - 2051-e.pdf
Data_Mark3_LTE_App_Chemicals_Minerals_W - 2052-e.pdf

Data Sheet
Mark 3 LTE Moisture Analyzer - Modular Infrared Moisture Analyzer with Quartz Radiator
