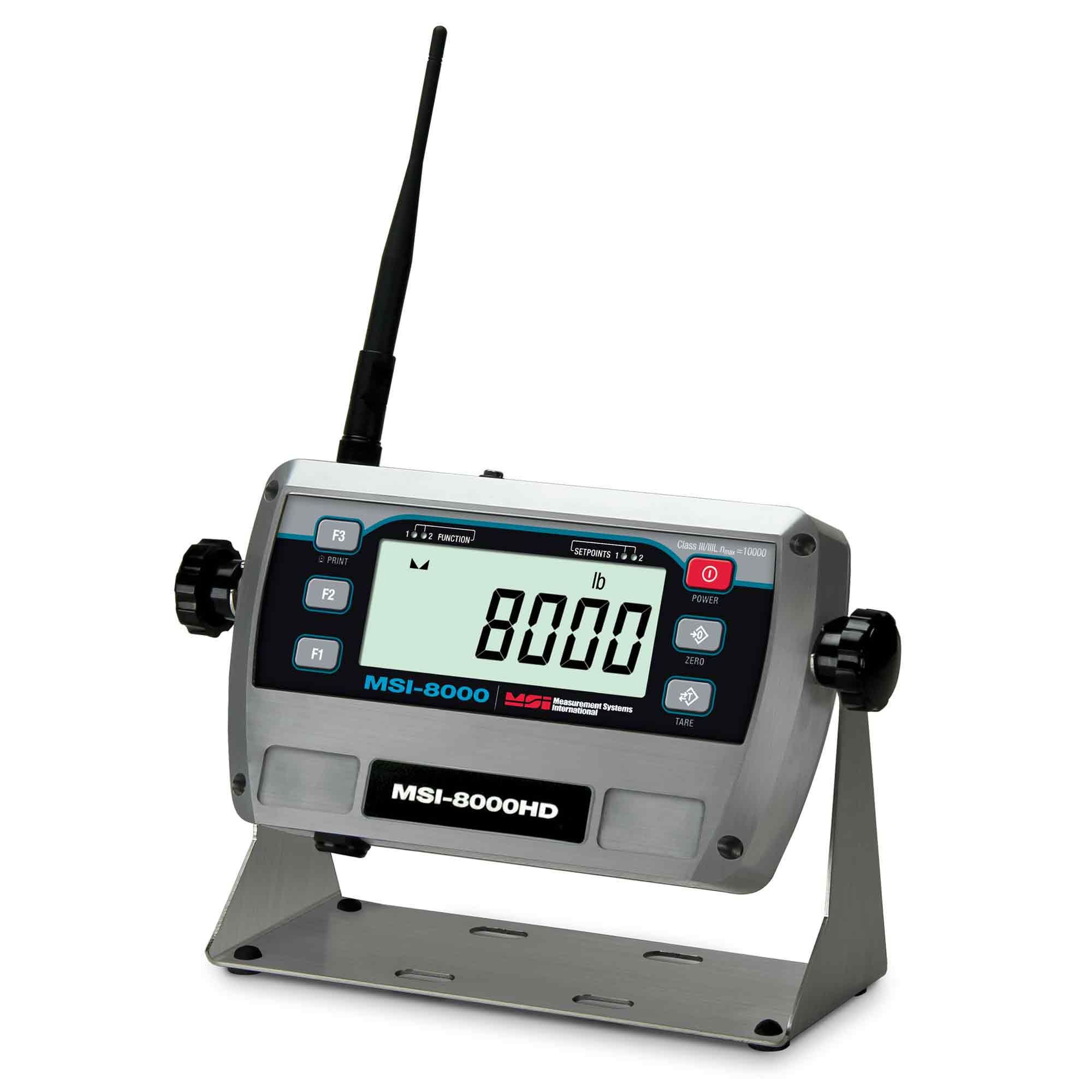

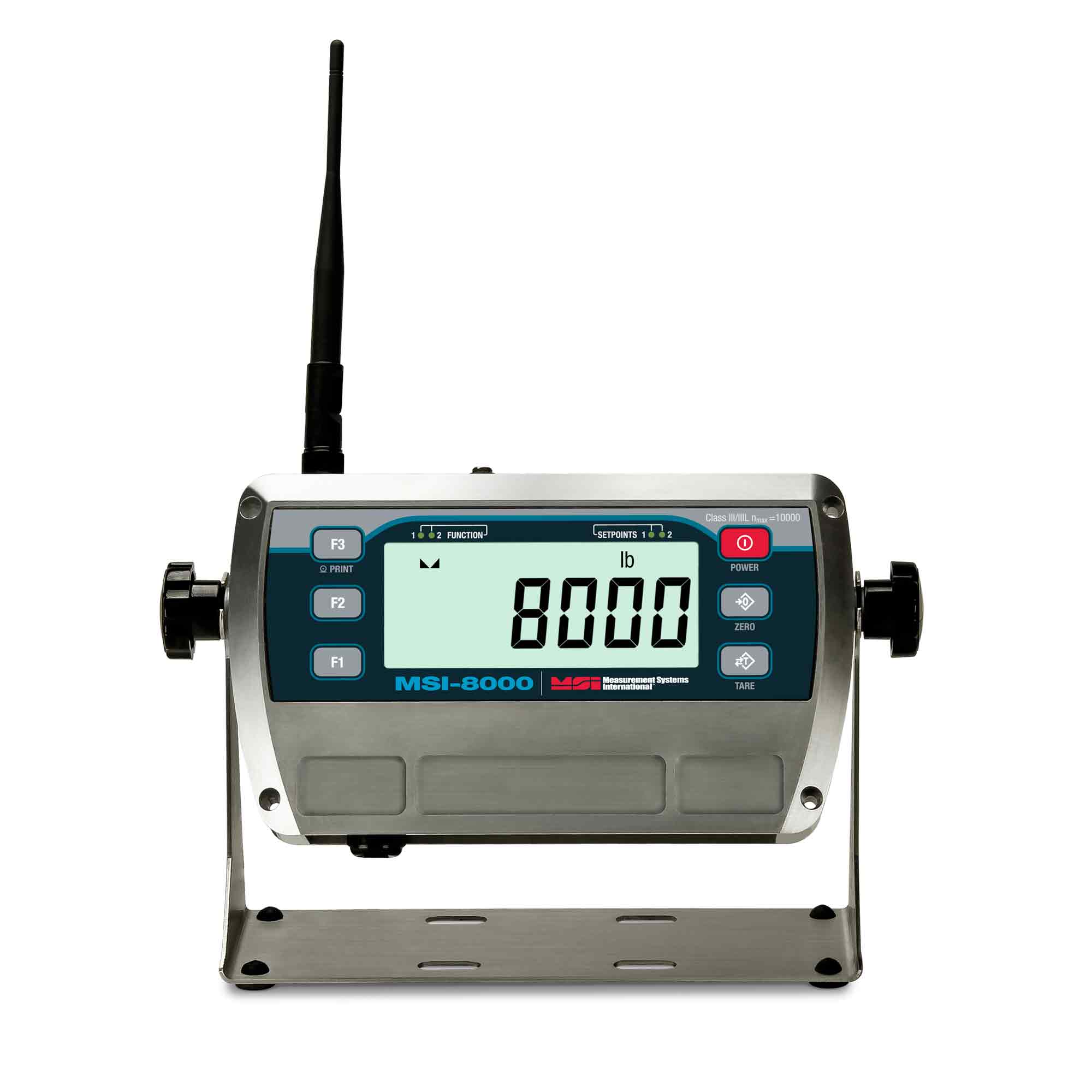

Rice Lake 158425 Remote Display, Final Assy 8000HD Meter RF AC Power

Rugged, Versatile Control

Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavy duty version of the reputable handheld MSI-8000 RF remote display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.

Rugged, Versatile Communication

User-definable function keys and a bold six-digit one inch display ease usability and readability.Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD meters may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD. Wi-Fi, Ethernet or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting.

Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.

Standard Features

• Indicator or RF remote display with six-digit 1.0 in (26.4 mm) LCD screen
• IP68 milled aluminum enclosure
• Membrane keypad for remote-control functionality
• User-definable function keys for added versatility
• Compatible with all ScaleCore-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001 TranSend
• Swivel tilt stand
• NTEP certified configuration

Options

• Up to 8 configurable relay outputs
• Wi-Fi communications
• Bluetooth communications
• 802.15.4 Serial RF
• FHSS
• Wired Ethernet

Specifications

• Enclosure: NEMA Type 4, IP68 milled anodized aluminum, with O-ring gaskets
• Keypad: On/Off, Zero (100%), Tare, Print, and Two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching
• Display: Six-digit 1.0 in (26.4 mm) LCD
• Units Displayed: Pounds, kilograms, tons, metric tons, kilonewtons
• Annunciators: Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs Channels: 1, 2, 3, 4, TTL
• Power: 90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC Optional battery power module available
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• RF Remote Channels: Up to four remote sensors, monitored individually, in pairs or sum all (non-A/D version only)
• Service Counters: A/D version only
• A/D Inputs: Two independent or summing load cell inputs
• Excitation: 4.8V current limited and over-voltage protected
• Filtering: Off, Low, Hi-1, Hi-2
• RF Radio Link: 2.4 GHz 802.15.4 Compatible with all ScaleCore-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
• RF Effective Range: Typically 100 or more feet (33m)
• Data I/O: Dual RS-232 comm ports
• Optional Communications: Wi-Fi, Bluetooth, Serial RF (Single Sequence or FHSS)
• Warranty: One-year limited
• Approvals: NTEP COC#15-110 (-10°C to 40°C)

Downloads

• MSI-8000HD Digital Weight Indicator Catalog Page
• MSI-8000HD RF Indicator Technical Manual
• MSI-8000HD RF Remote Display Technical Manual
• Ethernet 802.11b Operator Manual
• MSI Crane Scale Safety and Periodic Maintenance Manual
• MSI Wi-Fi Setup
• MSI-8000HD and MSI-8004HD Expanded Relay Option Kit Addendum
• ScaleCore Connect Software Manual
