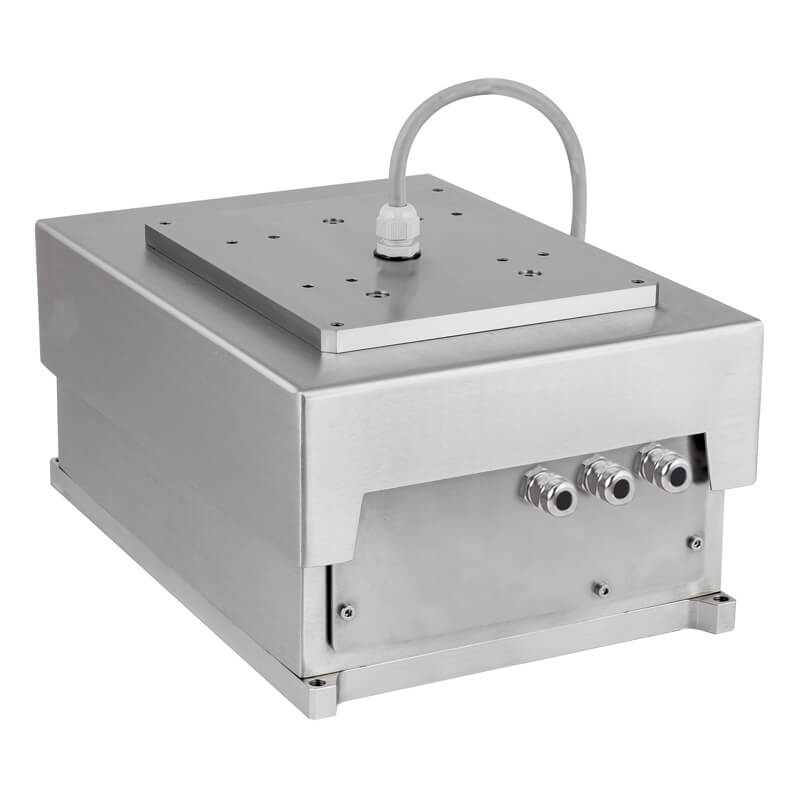

Vast Max Capacity Range Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement.
Protection Against Challenging Conditions Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation.
Fast and Precise Measurement High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module's converter throughput is 3200 meas./s.
Cooperation with terminals Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications.
Mechanical design versions:
MWMH xxx - 1 - model with Binder connectors (IP65),
MWMH xxx - 2 - model with Binder connectors, (IP65), power supply and control of the transporter on a weighing pan,
MWMH xxx - 3 - model with cable glands, (IP 69K),
MWMH xxx - 4 - model with cable glands (IP69K), power supply and control of the transporter on a weighing pan.
Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.
Maximum capacity [Max]: 5 kg
Minimum load: 10 g
Preload range: 4 - 7 kg
Readability [d]: 0.5 g
Tare range: -5 kg
Verification scale interval [e]: 0.5 g
Max readability for non-verified scale: 0.1 g
Repeatability: 0.1 g
Stabilization time: <0.1 s
OIML Class: III
Protection class: IP 65
Material: stainless steel
Communication interface: RS232, Ethernet, 2×IN / 2×OUT
