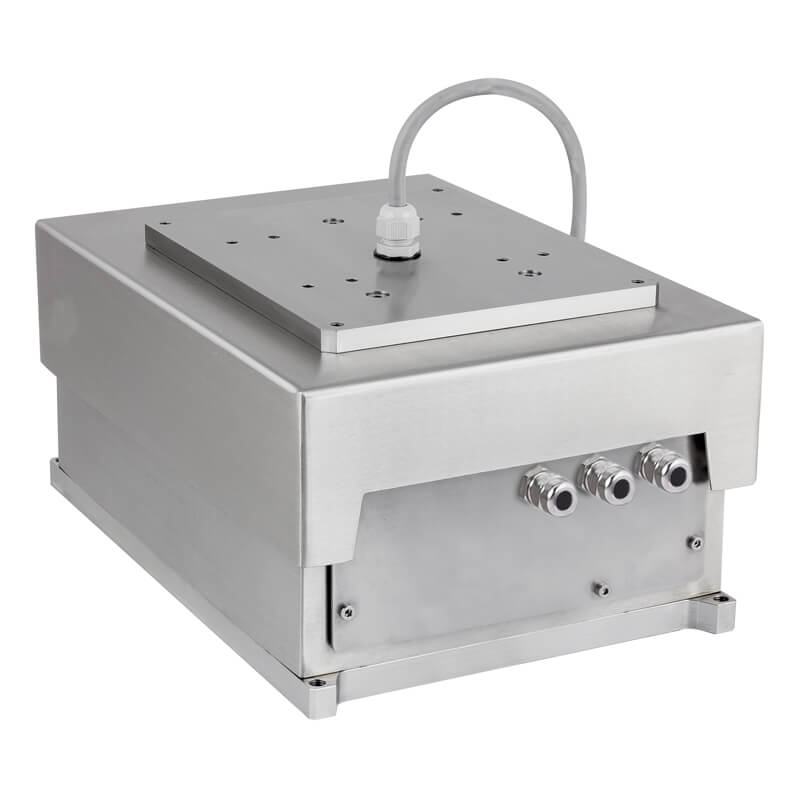

Radwag WX-016-0222 2 kg Capacity, 0.2 g Readability, MWMH 200-4 IP69K Electromagnetic Compensation Weighing Module with 2 Years Warranty
Free Shipping within the 48 contiguous united states
Brand new in its original packaging
Shop With Confidence
Trusted seller, fast shipping and easy returns.
Money Back Guarantee
Get the item you purchased or get your money back.
2 Years Warranty.
30 days returns. See details
Vast Max Capacity Range
Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement.
Protection Against Challenging Conditions
Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation.
Fast and Precise Measurement
High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module's converter throughput is 3200 meas./s.
Cooperation with terminals
Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications.
Mechanical design versions:
- MWMH xxx - 1 - model with Binder connectors (IP65),
- MWMH xxx - 2 - model with Binder connectors, (IP65), power supply and control of the transporter on a weighing pan,
- MWMH xxx - 3 - model with cable glands, (IP 69K),
- MWMH xxx - 4 - model with cable glands (IP69K), power supply and control of the transporter on a weighing pan.
Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.
- Maximum capacity [Max]: 2 kg
- Minimum load: 4 g
- Preload range: 4 - 7 kg
- Readability [d]: 0.2 g
- Tare range: -2 kg
- Verification scale interval [e]: 0.2 g
- Max readability for non-verified scale: 0.1 g
- Repeatability: 0.1 g
- Stabilization time: <0.1 s
- Adjustment: external
- OIML Class: III
- Protection class: IP 69K
- Material: stainless steel
- Communication interface: RS232, Ethernet, 2×IN / 2×OUT
- Power supply: 12 - 24 V DC
- Power consumption max.: 5 W
- Operating temperature: +10 - +40 °C
- Storage temperature: -20 - +50 °C
- Relative humidity: 15% - 80%
- Weighing pan dimensions: 212×174 mm
- Device dimensions: 344×224×166 mm
- Packaging dimensions: 580×413×360 mm
- Net weight: 12.4 kg
- Gross weight: 15 kg
- Warranty: 2 Years
