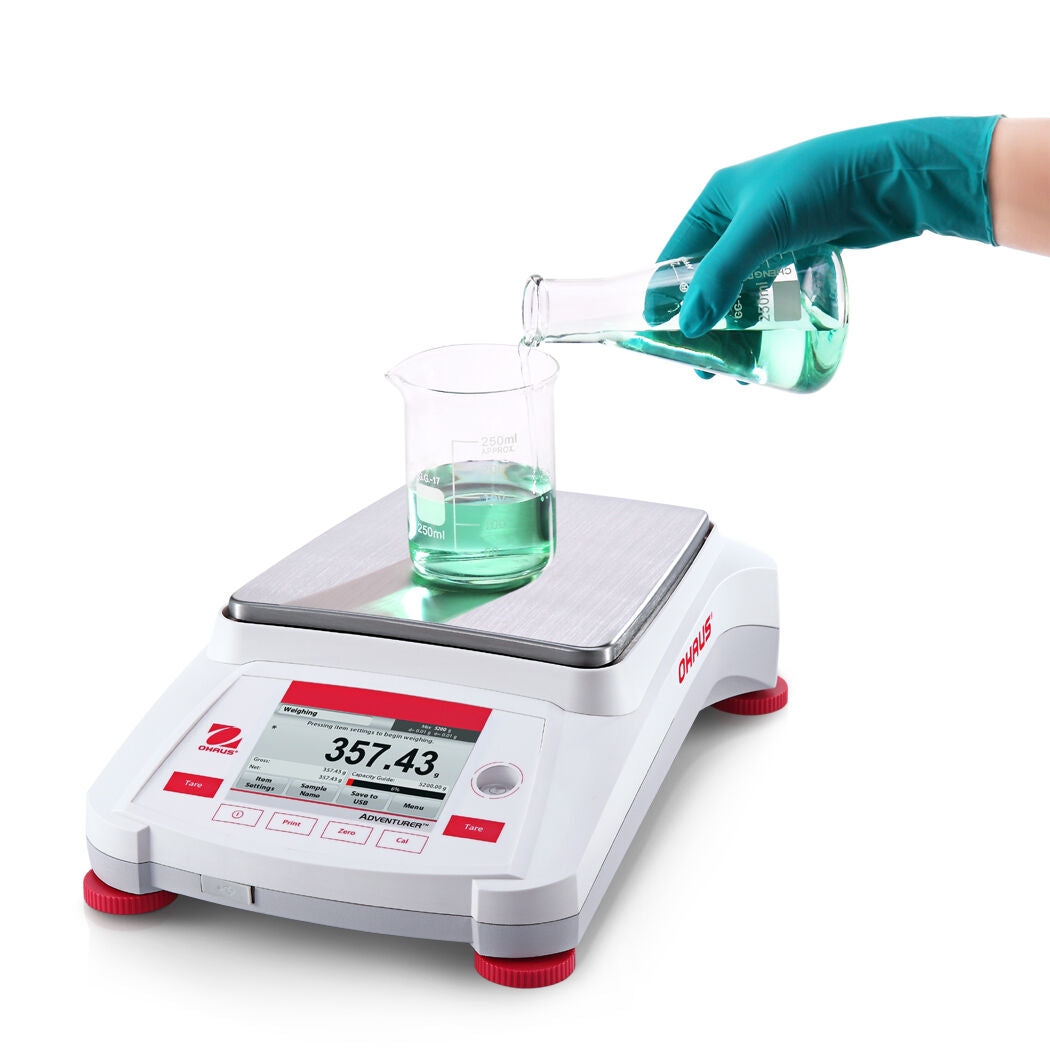

OHAUS AX8201N/E ADVENTURER PRECISION BALANCE 8200g 0.1g - 2 YEAR WARRANTY NTEP

Ohaus

Free Shipping within the 48 contiguous united states

  • $1,275.00
  • Save $225


The Most Complete Balance in its Class! ( External Calibration )

Ready For Your Lab, Wherever That May Be. AX8201N/E 8200g 0.1g

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in its class.

Specification AX8201N/E
Capacity (g) 8200
Readability d (g)

*Verification Interval e (g)

*Class

0.1



1


II
Repeatibility Std (g)

±0.1

Linearity (g) ±0.2
Weighing units

Gram, Milligram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Grain, Newton, Momme, Mesghal, Hong Kong Tael, Singapore Tael, Taiwan Tael, Tical, Tola, Baht, Custom Unit 1,

Weighing modes Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic Weighing,Totalization, Formulation, Density Determination, Display Hold
*Weighing Units, Certified Models ct, grain, g, oz, ozt, dwt, kg, lb
Calibration External Cal
Display Full-Color Touchscreen WQVGA Graphic LCD
Communication RS232, USB Device, USB Host
Tare range To capacity by subtraction
Stabilization time (seconds)


Sensitivity Drift (ppm/°C)
<=1.5




  9

Typical Min-weight(g) (USP u=0.10%, k=2)



Optimized Min-weight(g) (USP, u=0.10%, k=2)



200.0 g







82 g

Operating Temperature Range 50°F to 86°F (10°C to 30°C)
Operating Humidity Range Maximum relative humidity 80 % for temperatures up to 86 F / 30 C
AC adapter power requirements AC adapter input 100-240 VAC 0.3A 50-60Hz AC adapter output 12 VDC 0.84A
Storage temperature -14ºF (-10ºC) to 140ºF (60ºC) at 10% to 90% relative humidity, non-condensing
Pan size (in/cm)

Base Housing (W×H×D)

6.9 x 7.7 in / 175 x 190mm




13.93 x 3.94 x 9.05 in / 354 x 100 x 230 mm
Net Wt. (lb/kg) 8.4 lb / 3.8 kg
Shipping Weight 12.6 lb x 5.7 kg
Shipping Dimensions WxHxD (in/cm) 22W x 15.5H x 11.9D in/ 557W x 392H x 301D mm
*Certified models only
**The value for SRP is the standard deviation for n replicate weighing’s (n≥10)v

Additional Features
RS232 interface, integral weigh below hook, full housing in-use cover, removable stainless steel pan, die-cast metal bottom housing, security bracket, illuminated up-front level indicator, four adjustable feet, software lockout menus, stability indicator, software overload/underload indicators, user selectable environmental settings, audible indicator, user selectable brightness settings, auto dim, touchscreen calibration, auto tare, user selectable operating language (nine)
Approvals
Metrology: NIST Handbook 44, Measurement Canada Weights and Measures Regulations (Class I, nmax 220000; Class II, nmax 52000)
Product Safety: CSA C22.2 No. 61010-1, UL 61010-1, IEC 61010-1
Electromagnetic Compatibility: FCC Part 15 Class A, ICES-001 Class A, IEC 61326-1 (emissions Class B, immunity Industrial requirements)

**Accessories Sold Separately
SF40A Impact Printer  . . . 30064203 ($682.00)
Auxiliary Display . . ... . 80251396      ($45.00)
Density Determination Kit. .80253384 ($533.00)
Cable, USB Interface (Type A to B) .   83021085  ($132.00)
Security Device (Laptop Lock) . . . .  80850043     ($158.00)
RS232 Cable, PC 25 Pin       80500524 ($132.00)
RS232 Cable, PC 9 Pin.        80500525 ($132.00)
