IKA 20113460 SY 500 D Reactor Vessel

IKA 20113460 SY 500 D Reactor Vessel

IKA (Authorized Dealer)

Free Shipping within the 48 contiguous united states

  • $2,542.50

Model: 20113460

Brand new in its original packaging

Shop With Confidence

  • Authorized Dealer

    Trusted seller, fast shipping and easy returns.

  • Money Back Guarantee

    Get the item you purchased or get your money back.

  • Sales Support


  • Warranty Period


  • Returns

    30 days returns. See details

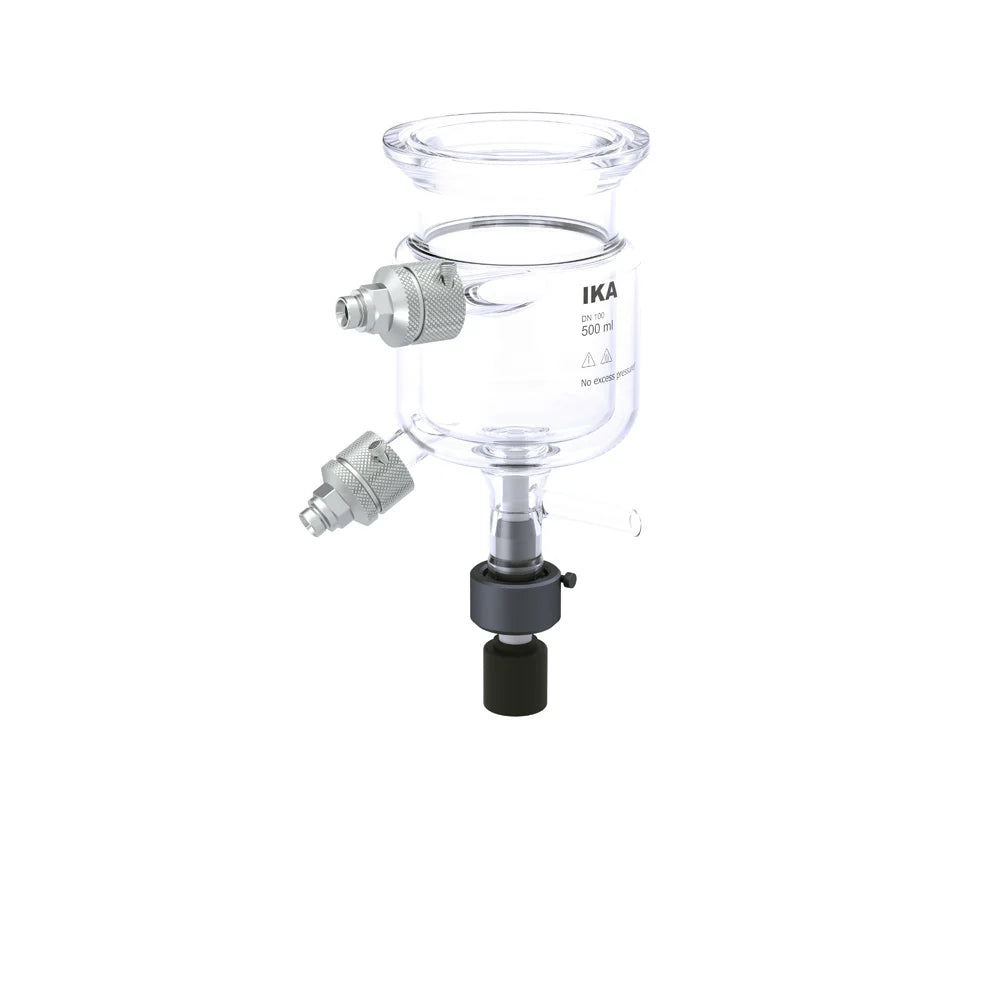

IKA 20113460 SY 500 D Reactor Vessel


Double-walled reactor vessel with bottom discharge including accessories for the EasySyn reactor system.
Volume: 500 ml
Flange size: DN 100
Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.

Scope of delivery:
Glasreactor incl. metal adapter

Volume0.5 l
Fill level diameter ratio1.375
Fill level at nominal volume72 mm
Vessel inner diameter99 mm
Vessel outer diameter130 mm
Height (room dimension)340 mm
Width (room dimension)207 mm
Depth (room dimension)141 mm
Flange typeacc. DIN 12214 with circular groove
Flange dimensionDN100
Flange collar diameter108.5 mm
Bottom shapeTorispherical head
Bottom drainyes
Bottom valveSafety valve
Bottom drain outlet inner diameter10 mm
Bottom drain outlet outer diameter15 mm
Bottom drain outlet length65 mm
Bottom drain shapestraight
Tempering jacket filling capacity0.412 L
Tempering jacket inlet connectionDN 15 (tech-flange)
Tempering jacket inlet inner diameter15 mm
Vacuum applicationyes
Tempering jacket outlet connectionDN 15 (tech-flange)
Tempering jacket oulet inner diameter15 mm
Thread closure systemM16x1
Width across flatsWAF 22
Material closure systemstainless steel 1.4404
Reactor vessel materialBorosilicate glass 3.3 DIN ISO 3585
Working temperature-50 - 230 °C
Useable volume30 - 610 ml
Useable volume with temperature probe min.260 ml
Attainable vacuum3 mbar
